This guide covers Pipecat Cloud-specific configuration for Telnyx WebSocket integration. For a complete guide including dial-in, dial-out, custom parameters, and advanced features, see the Telnyx WebSocket Integration guide.
Native support for Telnyx’s WebSocket Transport with Pipecat Cloud allows you to connect your AI agents with Telnyx’s voice infrastructure. This integration enables your Pipecat bots to handle real phone calls using Telnyx’s WebSocket streaming.

​

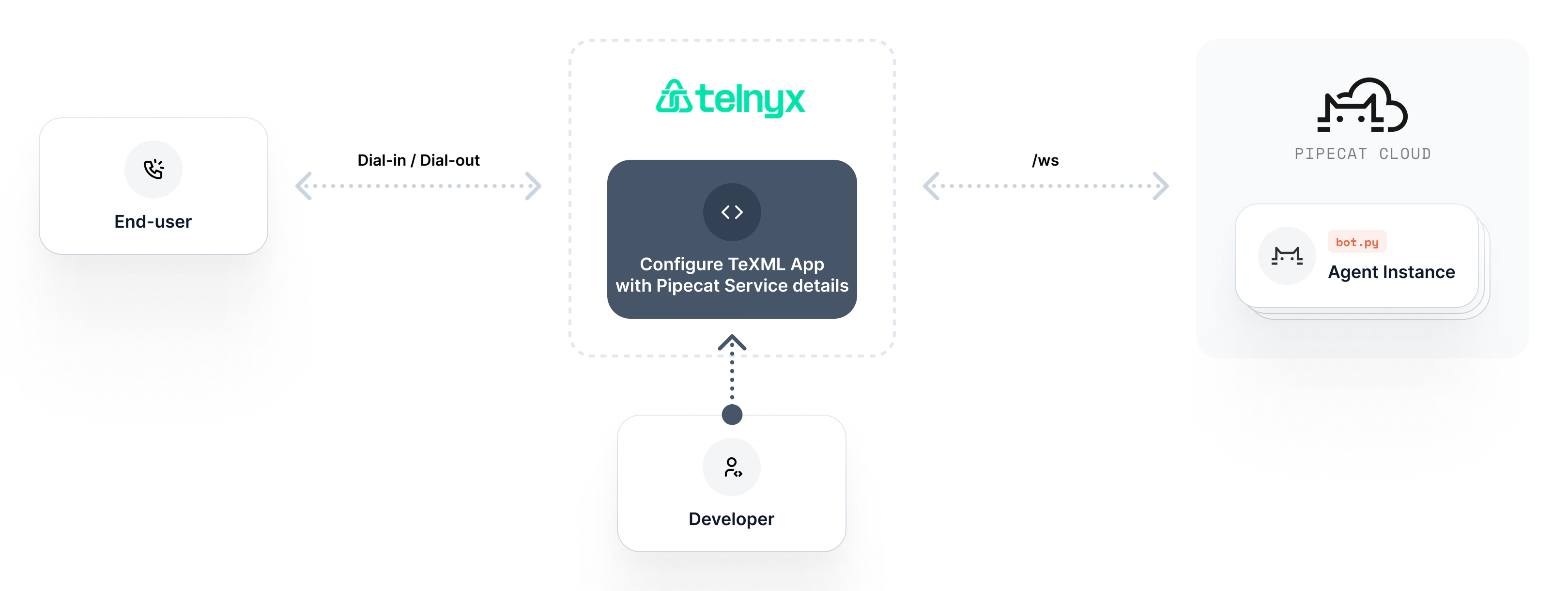

How It Works

Pipecat Cloud implements Telnyx’s bidirectional Media Streaming protocol. While audio streams flow through WebSockets, the call session is controlled by updating the Telnyx Extensible Markup Language (TeXML) associated with each call’s unique identifier (call_control_id). When Pipecat Cloud receives an incoming WebSocket connection from Telnyx, it processes the connected and start messages to initialize a new bot instance. All WebSocket messages are forwarded to your bot, including any custom parameters set in your TeXML. This allows your bot to leverage Telnyx’s Call Control API for advanced call control - such as recording conversations, transferring to human agents, or implementing complex call flows.

​
Prerequisites

Before setting up this integration, ensure you have:
  • A Telnyx account with voice capabilities
  • A Pipecat Cloud account with a Telnyx WebSocket-compatible bot
A ready-to-build example of a Telnyx websockets bot with complete source code is available in the pipecat-examples repo.

​
Pipecat Cloud Configuration

​
1. Get Your Organization Name

Retrieve your Pipecat Cloud organization name using the Pipecat CLI:
$ pipecat cloud organizations list
This command will output a list of organizations associated with your account. For example:
Organization        Name
──────────────────────────────────────
Default Workspace   three-random-words-randomnumber (active)

​
2. Create a TeXML Application

Purchase a phone number from Telnyx if you haven’t already, then create a TeXML Application with the following configuration:
<?xml version="1.0" encoding="UTF-8"?>
<Response>
  <Connect>
    <Stream url="wss://api.pipecat.daily.co/ws/telnyx?serviceHost=AGENT_NAME.ORGANIZATION_NAME" bidirectionalMode="rtp"></Stream>
  </Connect>
  <Pause length="40"/>
</Response>
Replace the placeholder values:
  • AGENT_NAME with your deployed bot’s name (e.g., my-first-agent)
  • ORGANIZATION_NAME with your organization name from step 1 (e.g., three-random-words-randomnumber)
For example, if your agent is named “customer-support” and your organization is “industrious-purple-cat-12345”, your serviceHost would be: customer-support.industrious-purple-cat-12345
Using Regional EndpointsIf you deployed your agent to a specific region, use the regional WebSocket endpoint to connect:wss://{region}.api.pipecat.daily.co/ws/telnyx?serviceHost=AGENT_NAME.ORGANIZATION_NAMEFor example, for Europe: wss://eu-central.api.pipecat.daily.co/ws/telnyx?serviceHost=my-agent.my-orgLearn more about regional endpoints.

​
3. Assign TeXML Application to Your Phone Number

  1. Navigate to Voice → Programmable Voice in your Telnyx dashboard
  2. In the TeXML Applications tab, select the pencil icon for the TeXML Application you created in step 2
  3. In the Numbers tab, select Assign numbers
  4. Select the number you would like to assign the TeXML Application to
  5. Click Save to apply your changes

​
Testing Your Integration

To test your integration, simply dial your Telnyx phone number from any phone. The call will connect to your Pipecat Cloud bot, which will respond according to your bot’s configuration.

​
Next Steps

For complete implementation details including dial-out, caller personalization, custom parameters, and advanced call control features, see the Telnyx WebSocket Integration guide.
